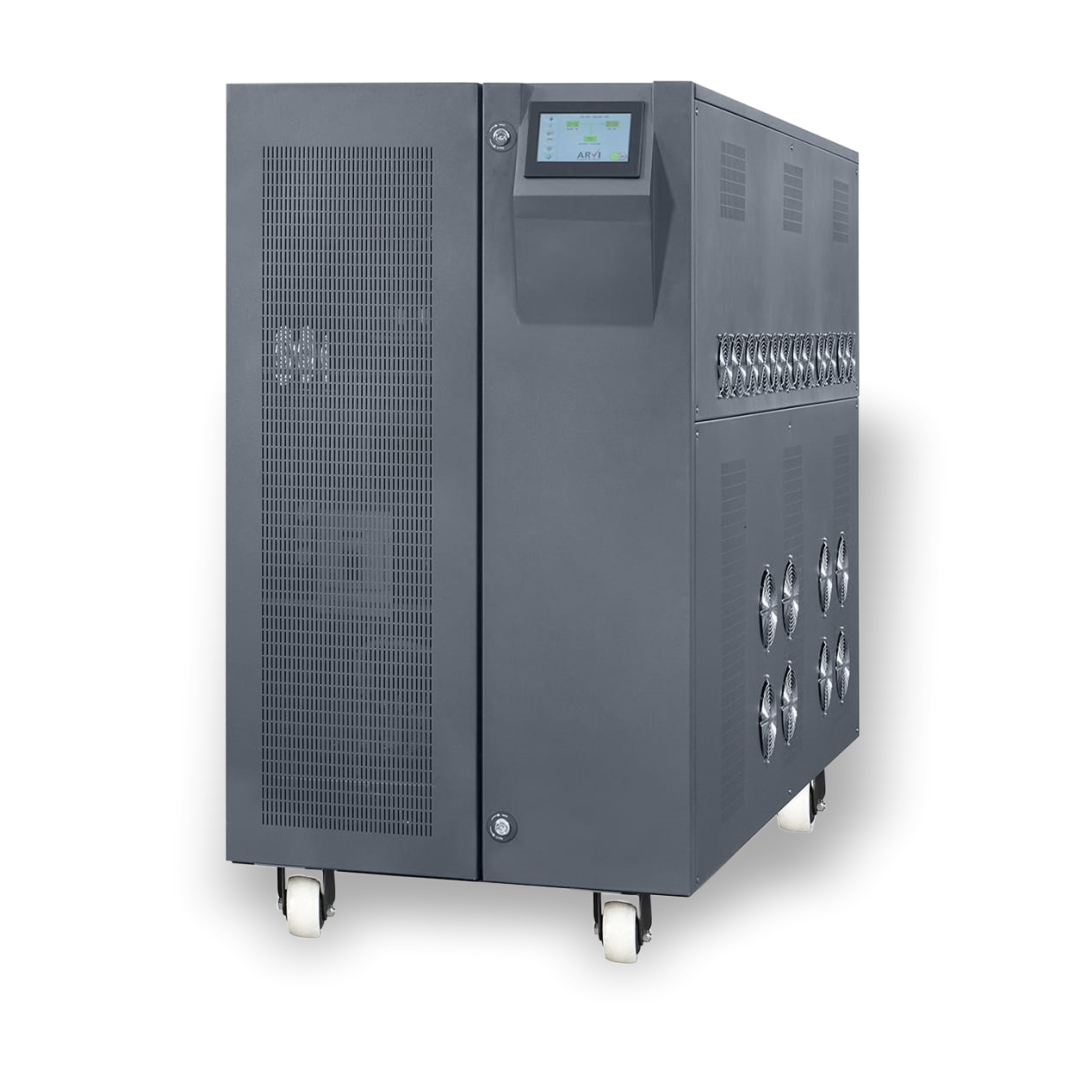

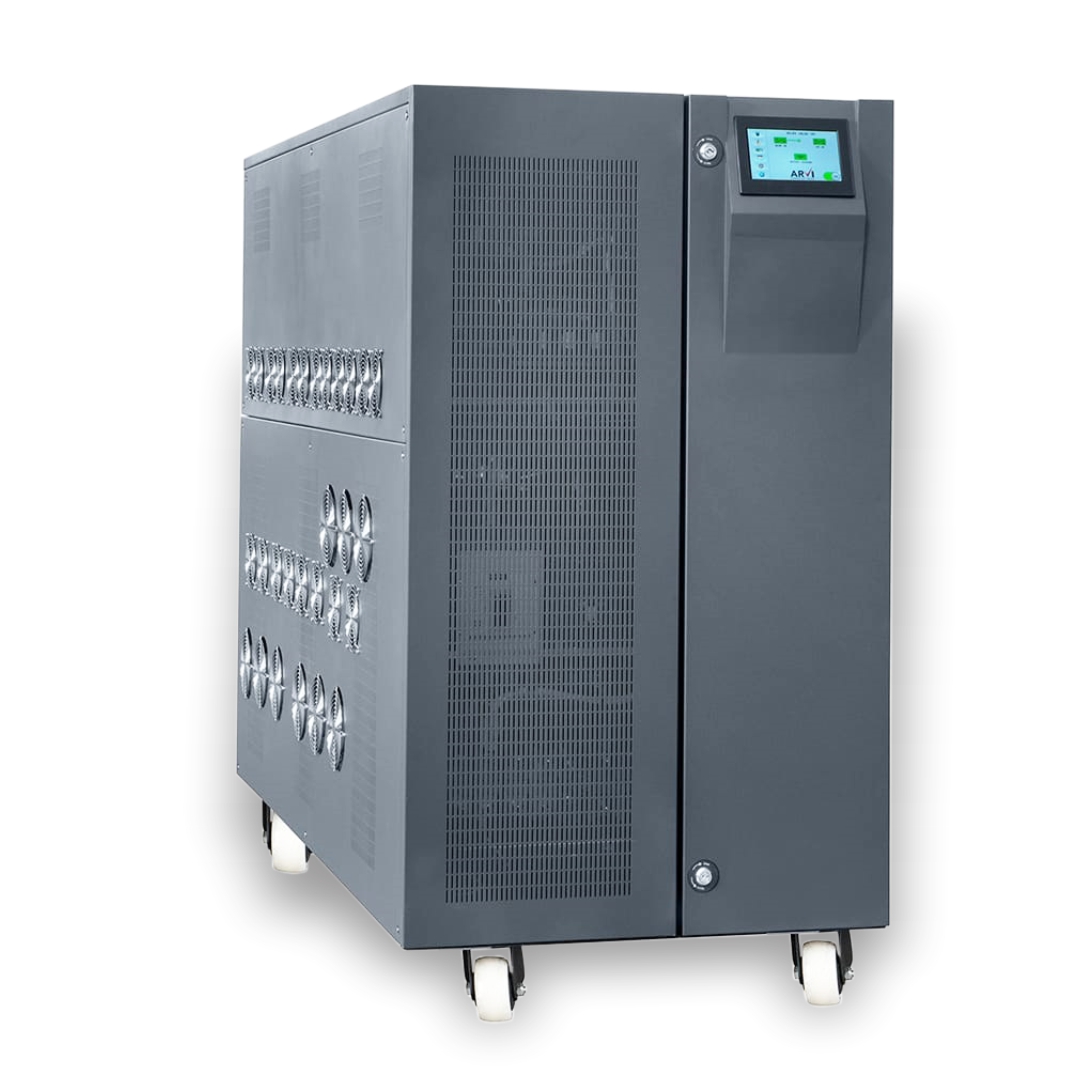

PFC Series Online UPS
PFC series is a double conversion Online UPS with input power factor correction for banking tenders & projects, OEMs, dealers, distributors, export & Industrial application.
PFC 303 is a double conversion Online UPS for industrial application with regenerative load bank. Designed for harsh electrical and environmental conditions this model is a long life design; offers superior levels of protection against all the input power-related problems and provides regenerated, clean, network grade, high quality power to the connected loads.
- Offices
- School & Colleges
- Banking sector
- Finance Insurance
- Beauty Parlors
- Gym & fitness PCs
- Servers
- Photocopiers
- Home Theaters
- LCD and LED Sign Boards
- CNC
- Centralized Air-Conditioners
Industrial design - Designed to handle high inrush current and the transformer is designed to handle the load harmonic current which heats up the inverter transformer.
The UPS is utility friendly and generator compatible and prevents the overrating of electrical wires, reduce reflected harmonies back to the source.
- Power-Conditioning Topology
- Power factor corrected Event logging & SNMP
- DSP technology Regenerative load handling
- Designed in our full fledged in-house R&D
- Indigeneous-Industrial Grade Harsh Environment Design
- Unity PF Regenerative Load Handling
| RATING | : 10KVA | 15KVA | 20/30/40/60/80/100/120/150/200 KVA |
| DC BUS | : 240/360 VDC | 240 VDC | 360 VDC |
| Input Voltage | Ø & N | : 415V 3 |
| Input Voltage Window | : 330 - 470V |
| Input Frequency | : 50Hz ± 10% |
| Input PFC @ 100 % Load | : 0.95 |
| Power walk in | : Soft start for 0-20 seconds power walk-in. |
| RECTIFIER | Type | : IGBT based full bridge |
| Voltage Regulation | : ( ± ) 1% |
| Ripple Voltage | : 2% |
| Converter Protection | : Advanced Electronic Protection for device safety backed up with MCB’s/ MCCBs & fast acting fuses |
| INVERTER | Type | : Ø Input/ 3-Ø Output | IGBT based MPWM with instantaneous Sinewave Control |
| Power Factor | : 0.8 lag |
| Nominal Voltage | : 400 V Ph- Ph :230V Ph- Neutral |
| Regulation | : Balanced Load ( ± ) 1% | Unbalanced Load ( ± ) 1% |
| Unbalanced Load Phase Shift | : 120°± 0.5° |
| Frequency | : 50 Hz ± 0.1Hz |
| Waveform | : True Sinewave |
| Total Harmonic Distortion | Linear - Non Linear Load | : Linear Load - 2% | Non Linear Load - 6% |
| Transient Response | : Remains within +/- 5% & recover to normal within 20 msec |
| Over Load Capacity | : 100% - Continuous | 125% - 1 Minutes | 150% - 5 Seconds |
| Crest Factor : 1 | : 3 |
| Nominal Output Current Per Phase | : 10KVA - 11 A / 15KVA - 17A / 20KVA -23A / 30KVA - 35A / 40KVA - 46A / 50KVA - 58A / 60KVA -69A/ 80KVA -93A / 100KVA - 116A / 120KVA - 139A / 150KVA 174 A / 200KVA -231A |
| Mode of Operation | : Designed for Continuous Operation |
| ISOLATION | : True Online with complete galvanic isolation |
| Inverter Protection | : Advanced Electronic Protection for device safety backed up with MCB’s/ MCCBs & fast acting fuses, high speed pulse by pulse electronic device protection over voltage / under voltage protection, Electronic over current trip |
| Manual Bypass | : Provided |
| Static bypass(Optional) | : Optional |
| Overall Efficiency @ 100 % load | : 86 % to 88 % |
| Battery Type | : SMF/ TUBULAR |
| RATING | : 10 KVA to 200KVA |
| Battery Voltage - 12 V No. of Batteries | : 20- 30 No's |
| Voltage | : 240- 360 V |
| Battery Low advance warning at | : 11 V / Battery |
| Battery Low cut off at | : 10.5 V / Battery |
| Charger | : CCCV |
| Charging Current Standard | : 0-10 A |
| ALARMS | : Input / Low / Fail | Output Overload | Over Temperature | Battery low |
| LED Indications (Single LED with multi function ) | : Mains on | UPS On | Battery Low | Overload | UPS Trip |
| User Friendly LCD Display shows tde following parameters | : Input Voltage | Output Voltage | Load Current | Output Frequency | Battery Voltage |
| Output Under Voltage | Output Over Voltage | : Protects tde load and its components from premature failure |
| Output Single Phase prevention | : Protects tde connected tdree phase loads & its components from premature failure |
| Output short circuit with pulse by pulse current limit up to 200ì secs.Protects 300% for 15 msecs,500% for 5 msec & 1000% for 1.5 msec of tde rated current | : Protects against false tripping & complete shutdown in case of surge power drawn by tde load (non linear loads) |
| Neutral drift | Neutral failure | Lightning | EMI & Harmonics in tde input neutral | 'High voltage transient protection & Electrostatic discharge protection as per IEC 62040-2 | : Galvanic isolation provides complete isolation between output neutral and Input & tde output is fully protected against neutral drifts, voltage avalanches like lighting & input harmonics commonly found in tde input side. |
| Input MCCB/MCB | : Protects tde input from very large current caused by short circuit or due to a damaged internal component and avoids furtder damage to tde equipment. |
| Input Under Voltage / Over Voltage | : Prevents damage of components in tde input sensing & tde converter devices. |
| Rectifier Over Voltage | : Prevents damage to tde inverter & tde charger components |
| Single phase prevention | : Prevents damages to tde components in tde input & converter |
| Over Temperature Protection | Battery Low protection | : Protects tde Inverter & Converter magnetics and switching devices against premature failure |
| Over Load protection | Short circuit protection | : Protects tde Inverter components against premature failure |
| 'High voltage transient protection & Electrostatic discharge protection as per IEC 62040-2 | : Prevents damage of components in tde input sensing & tde converter devices. |
| External Magnetic field Protection | : Protects against external power frequency magnetic field |
| Acoustic Noise level | : 60db @ 1.5 meter |
| Ambient Temperature | : 0 to 40 Deg C |
| Storage Temperature | : -10 to 70 Deg C |
| Humidity | : Up to 95% RH Non condensing |
| Altitude | : 3000 Feet above sea level (without derating) |
| Extreme climatic conditions | : AC Environment is required if tde temperature goes beyond tde normal operating temperature (0-40 deg C) |
| Enclosure Protection Grade | : IP - 20 |
| Cooling | : Forced Air |
| Cable Entry | : Front side bottom |
| Testing Standard | : As per IEC 62040 - 3 |
